Global Shutter SDI Camera

VIS Continuous ZoomLens 18-500mm

INTRODUCTION：

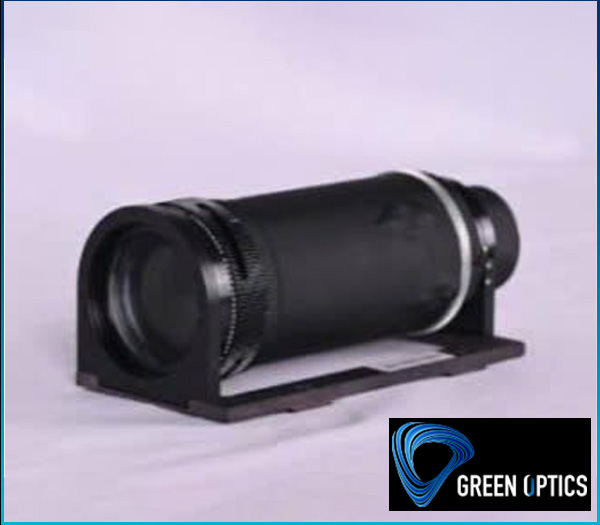

The Visible Light Continuous Zoom lens series is an industry-leading HD motorized zoomlens
designed for day and night use. The 27x high magnification lens plays an important role inlong-distance surveillance of vehicles, pods, ships, etc.

FUNCTIONAL CHARACTERISTICS：

♦ IR day and night dual function, with 24 hours of surveillance
♦ Multiple infrared wavelengths available (400- 1100nm)
♦ Scope of application: infinite remote monitoring
♦ 27 times optical magnification, 18-500mm focal length
♦ Light weight, compact size and exquisite
♦ A variety of flexible control functions remote night vision monitoring, automatic focus can beadded. (automatic focus to achieve the automatic focus function, the image is clear no matter
what focal length, it is able to get a clear image in 3 second.)
♦ Strong environmental adaptability make it works normally at -40℃ to +60℃environment
♦ Optical axis consistency assurance

Global Shutter SDI CameraProduct Features

Characteristic
● 1/1.8 inch CMOS, with an output capacity of 1080/60fps, Can display FULL SCREEN1080P HDimages. High resolution, super sensitivity has good color reduction, provides a clearer visual
effect, up to 1080 TV lines, and ADAPTS to changes in the color temperature of the light
source in a wider range of color temperatures. Using unique digital processing technology for
low light and starlight night environments, superior ultra low illumination image qualitymonitors the appearance and color of the subject as clearly as during the day in an ultra-lowLUX environment.
● This product adds the global shutter function. When the image sensor in the global shutter
mode collects images, each pixel in the pixel array is exposed at the same time, and after theexposure is finished, the image signal collected by the pixel is read one by one. When eachpixel in the pixel array collects image signal, the moving object can be regarded as stationary. Therefore, the global shutter method is suitable for capturing images of moving objects.
● For fog, dust, rain fog, haze, steam, water and other environment, DEFOG function can clearlyrestore the original picture, can be used in forest monitoring, river sea monitoring, border coast monitoring, traffic industry road vehicle monitoring, license plate capture, oil field monitoring, safe city and other occasions.
● Video format: 1080P, maximum resolution 1920*1080.
● Strong light inhibition( HLI): achieve the correct exposure ion in a specific area.
● Intelligent 0SD (menu) operating system, particularly strong DSP memory function. Power
off will not lose data, the operation mode display function is simple, convenient, intuitive, users can easily operate and use the product, including a variety of commonly used national
languages in the software for customers to choose.
● BLC (super backlight compensation): When there is a bright light source on the back of thesubject object, it can ively illuminate the dark part of the subject object caused by thebacklight, so as to balance the overall brightness of the subject object.
● Super WDR digital width dynamic function, the same portrait in the bright face dark surface or
indoor window area, the light is completely balanced, the details are visible.
● Mobile detection, privacy occlusion, mirror image, flip, digital amplification function, etc.
● OSD provides easy camera operation by providing an easy OSD (screen display) menu.
● 3D digital noise reduction, supersensitivity (frame accumulation).
● Support automatic aggregation function, 3/4/8 times, optional automatic aggregation
